Washer Fluid Reservoir, Removing And Installing, AUDI A3/S3 With Side Auxiliary Cooler: Removing

-- Remove the noise insulation. Refer to NOISE INSULATION .

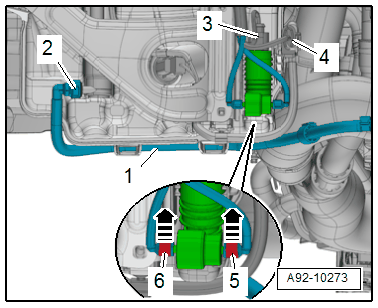

-- Disconnect and free up the central connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Place a drip tray under the windshield washer fluid reservoir.

-- Release the locking clamps -5 and 6- in direction of -arrows- and remove the water hose from the windshield washer pump.

-- Press the release button and remove the water hose -2- from the headlamp washer pump.

-- Free up the water hose -1-.

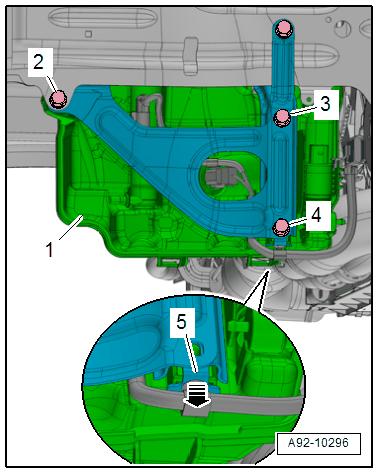

-- Remove the bolts -2, 3 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the windshield washer fluid reservoir -1- off the mount -5- -arrow- and pull it downward off the filler neck.

-- Remove the windshield washer fluid reservoir.
