Washer Fluid Reservoir Filler Tube, Removing And Installing, AUDI RS3: Removing

-- If there is washer fluid in the filler neck, drain it by removing the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Place a drip tray under the washer fluid reservoir.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

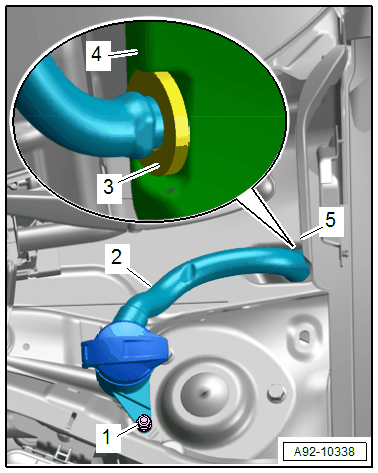

-- Remove the nut -1- and the filler neck -2- with the filler neck from the washer fluid reservoir -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the filler neck with filler tube upward through the body opening -5-.
