Washer Fluid Reservoir Filler Tube, Removing And Installing, AUDI A3/S3 With Side Auxiliary Cooler: Installing

Install in the reverse order of removal. Note the following:

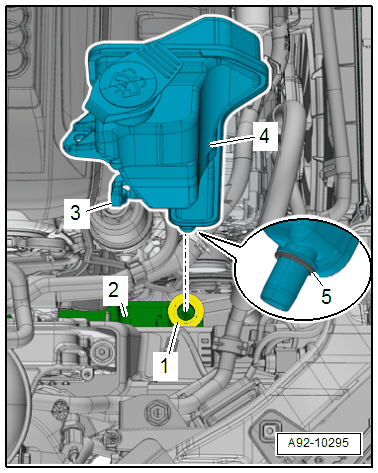

-- Check the grommet -1- for proper seating.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the O-ring -5- all the way onto the filler tube for the filler neck -4-.

-- Attach the filler neck to the mount -2- and the windshield washer fluid reservoir.

• The guide -3- must engage into the mount.

-- Insert the filler connection into the windshield washer fluid reservoir.
