Overview - Rear Window Washer System, AUDI A3 Without Side Auxiliary Cooler

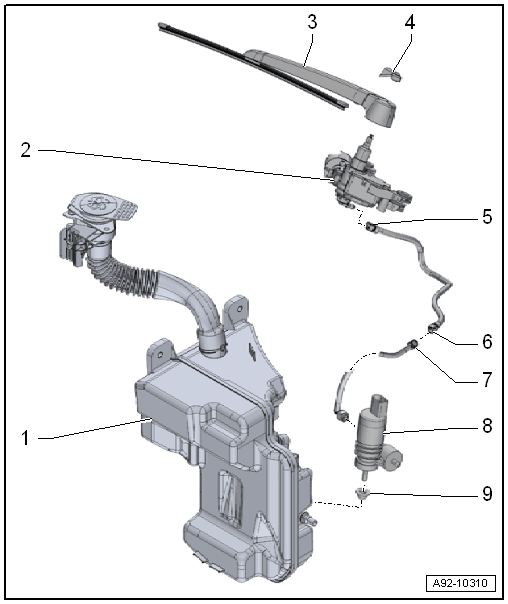

Fig 1: Exploded View Of Rear Window Washer System, Audi A3 Without Side Auxiliary Cooler

Courtesy of AUDI OF AMERICA, LLC

1. Windshield Washer Fluid Reservoir
   • Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
2. Rear Window Wiper Motor -V12-
3. Wiper Arm
4. Spray Nozzle
   • Removing and installing. Refer to SPRAY NOZZLE, REMOVING AND INSTALLING .
   • Adjusting. Refer to appropriate service information.
5. Water Hose
   • For the rear window washer system
6. Water Hose Connection
   • Near the left rear C-pillar
7. Water Hose Connection
   • Near the lower left A-pillar
8. Windshield And Rear Window Washer Pump -V59-
   • Removing and installing. Refer to Windshield And Rear Window Washer Pump -V59-, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
9. Grommet
   • Replace if damaged.
