Spray Nozzles, Removing And Installing, AUDI RS3: Removing

-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front bumper cover. Refer to OVERVIEW - BUMPER COVER .

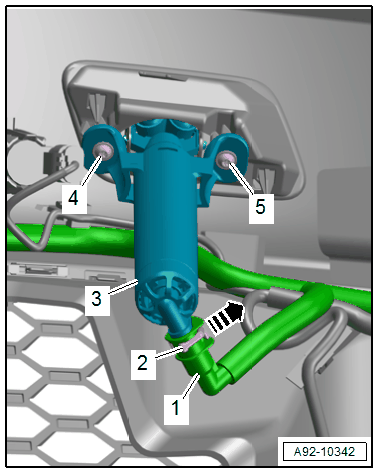

-- Remove the bolts -4 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the spray nozzles -3- toward the rear.

-- Place the drip tray under the spray nozzle.

-- Open the clip -2- in direction of -arrow- and remove the windshield washer fluid hose -1- from the windshield washer pump.
