Overview - Headlamp Washer System, AUDI A3/S3 With Side Auxiliary Cooler

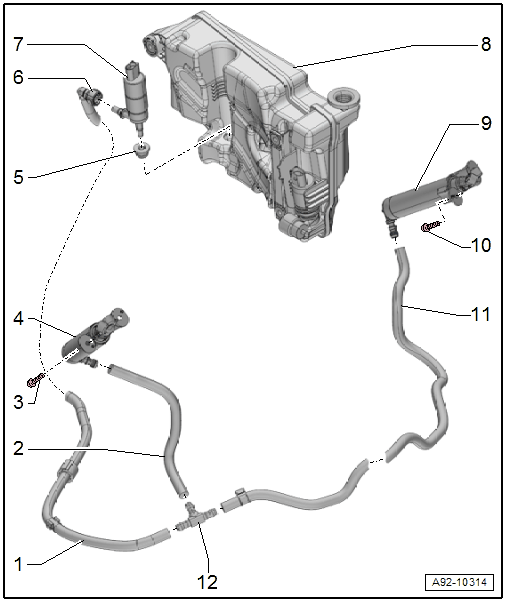

Fig 1: Exploded View Of Headlamp Washer System, Audi A3/S3 With Side Auxiliary Cooler

Courtesy of AUDI OF AMERICA, LLC

1. Washer Fluid Hose
   • From the Headlamp Washer Pump -V11-
2. Washer Fluid Hose
   • For the right spray nozzle
3. Bolt
   • 0.9 Nm
   • Quantity: 2
4. Right Spray Nozzle
   • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING, WITH SIDE AUXILIARY COOLER .
5. Grommet
   • Replace if damaged.
6. Connection
   • For washer fluid hose
   • To replace, warm and remove the washer fluid hose
7. Headlamp Washer Pump -V11-
   • Removing and installing. Refer to Headlamp Washer Pump -V11-, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
8. Windshield Washer Fluid Reservoir
   • Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
9. Left Spray Nozzle
   • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING, WITH SIDE AUXILIARY COOLER .
10. Bolt
    • 0.9 Nm
    • Quantity: 2
11. Washer Fluid Hose
    • For the left spray nozzle
12. T-Connection
    • For washer fluid hose
    • To replace, warm and remove the washer fluid hose
