Component Location Overview - Telephone System, Cabriolet, Through My 2016

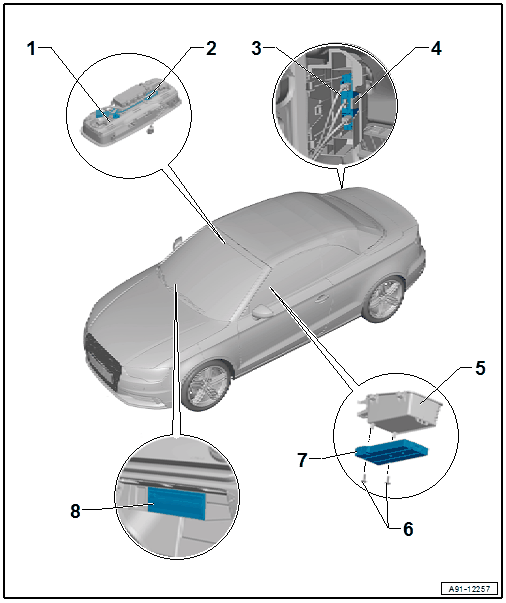

Fig 1: Overview Of Telephone System, Cabriolet, Through MY 2016

Courtesy of AUDI OF AMERICA, LLC

1. Front Interior Lamp -W1-
   • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
2. Telephone Microphone -R38-
   • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to MICROPHONE UNIT IN FRONT ROOF MODULE -R164-, REMOVING AND INSTALLING, CONVERTIBLE .
3. Cellular Telephone Amplifier -R86-
   • Connector Assignment. Refer to CELLULAR TELEPHONE AMPLIFIER -R86- .
   • Removing and installing. Refer to CELLULAR TELEPHONE AMPLIFIER -R86-, REMOVING AND INSTALLING, CONVERTIBLE .
4. Bracket Catch
5. Center Console Storage Compartment
6. Bolt
   • 2 Nm
   • Quantity: 2
7. Telephone Baseplate -R126-
   • Audi phone box
   • Connector Assignment. Refer to TELEPHONE BASEPLATE -R126-, THROUGH MY 2016 .
   • Removing and installing. Refer to TELEPHONE BASEPLATE -R126-, REMOVING AND INSTALLING, THROUGH MY 2016 .
8. Information Electronics Control Module 1 -J794-
   • Connector Assignment, MMI Radio MOST (I8D). Refer to MMI RADIO MOST (I8D), THROUGH MY 2016
   • Connector Assignment, MMI Navigation plus (I8G). Refer to MMI NAVIGATION PLUS (I8G), THROUGH MY 2016 .
   • Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
