TV Tuner, Removing And Installing, Convertible: Notes
Special Tools And Workshop Equipment Required
- Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 .

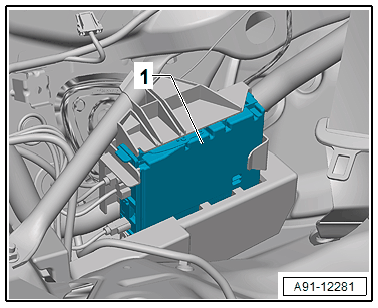

The TV Tuner - R78- -1- is located behind the right side trim panel.
NOTE:
If replacing the control module, select the "Replace control module" function for the corresponding control module on Vehicle Diagnostic Tester.
