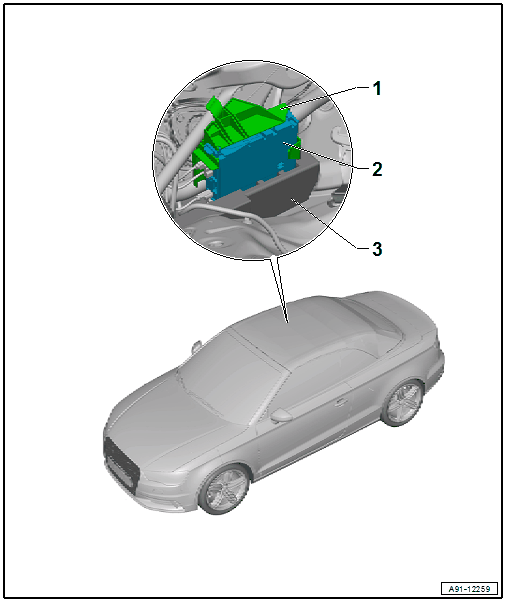

TV System Component Location Overview, Convertible

Courtesy of AUDI OF AMERICA, LLC

1. Upper Bracket
2. TV Tuner -R78-
   • Connector Assignment. Refer to CONNECTOR ASSIGNMENTS .
   • Removing and installing. Refer to TV TUNER, REMOVING AND INSTALLING, CONVERTIBLE .
3. Lower Bracket
