Antenna Amplifier -R24-, Removing And Installing, Convertible: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

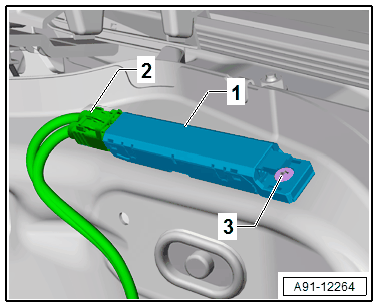

-- Release and disconnect the connectors -2- from the Antenna Amplifier -R24- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the screw -3- (do not remove) and remove the Antenna Amplifier -R24- -1- from the frame.
