Backrest Cover, Removing And Installing, Standard/Sport Seat: Removing

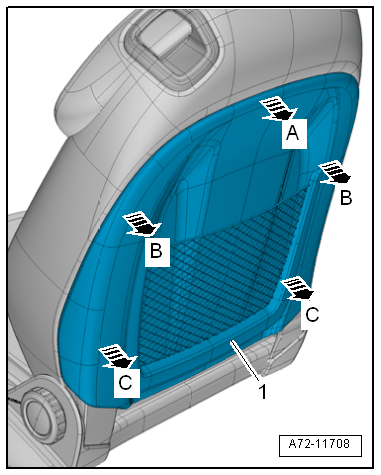

GWWA72-11708Courtesy of AUDI OF AMERICA, LLC

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Carefully unclip the backrest cover -1- starting at the top of the backrest -arrow A- using the Pry Lever: 80 - 200  .

-- Loosen the side retaining tabs -arrows B and C- and remove the backrest cover upward from the backrest.
