Backrest Release Trim, Removing And Installing, Standard Seat/Sport Seat: Removing

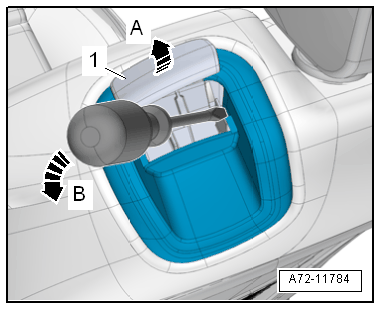

GWWA72-11784Courtesy of AUDI OF AMERICA, LLC

-- Pull the operating lever upward -arrow A-.

-- Push a flat-head screwdriver between the trim and operating lever, as shown.

-- Release the right hook -arrow B-.

-- Hold the operating lever pushed -1-, push a flat-head screwdriver between the trim and operating lever, as shown.

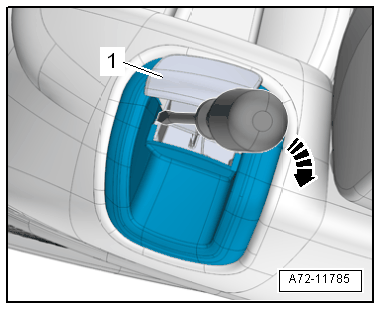

GWWA72-11785Courtesy of AUDI OF AMERICA, LLC

-- Release the left hook -arrow-.

-- Bring the operating lever -1- back into the resting position.

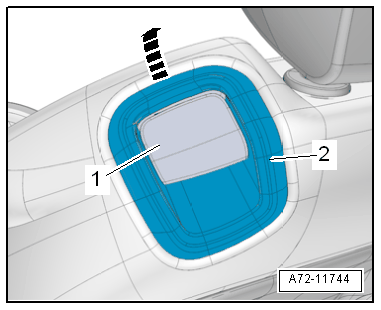

GWWA72-11744Courtesy of AUDI OF AMERICA, LLC

-- Disengage the trim -2- by hand in the -direction of the arrow-, and if necessary push on the opposite side.
