Overview - Front Center Armrest

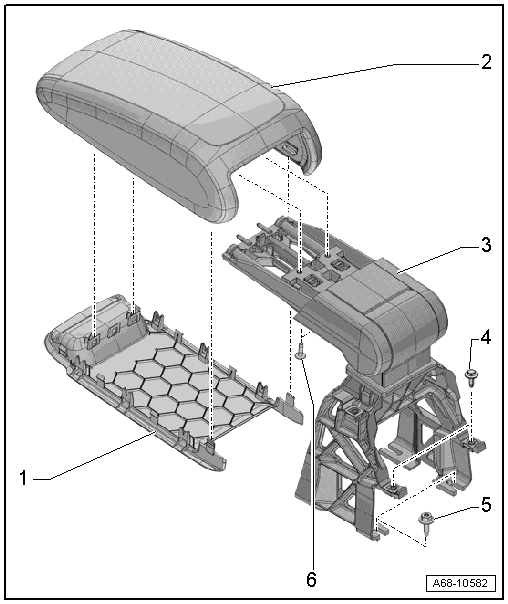

Fig 1: Exploded View Of Front Center Armrest

Courtesy of AUDI OF AMERICA, LLC

Cover for Center Armrest Upper Section
- Press on until it engages audibly
Center Armrest Upper Section
- Removing and Installing. Refer to CENTER ARMREST UPPER SECTION, REMOVING AND INSTALLING .
Front Center Armrest
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 3 Nm
Bolt
- Quantity: 4
- 8 Nm
Bolt
- Quantity: 2
- 3 Nm
