Front Center Armrest, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

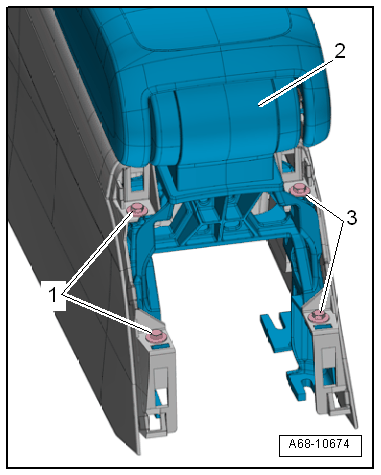

-- Remove the bolts -1 and 3-.

-- Open the center arm rest upper section.

-- Push the center console on the sides slightly outward from the center arm rest and at the same time remove the center arm rest -2- downward.
