Center Console Bracket, Removing And Installing: Removing

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

Center Console Font Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Push aside the carpet in the area of the threaded connection and remove the nut -1-.

-- Remove the center console bracket -2-.

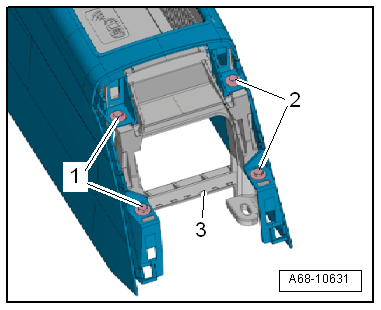

Rear Center Console Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

-- Remove the bracket -3- from the center console.

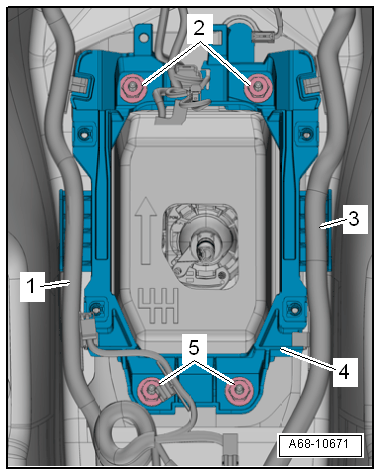

Center Console Securing Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wiring harness -1 and 3- from the securing bracket.

-- Disconnect and free up the connectors.

-- Remove the nuts -2 and 5- and remove the securing bracket -4-.
