Component Location Overview - Telephone System, 3-Door And 5-Door Vehicles, Through My 2016

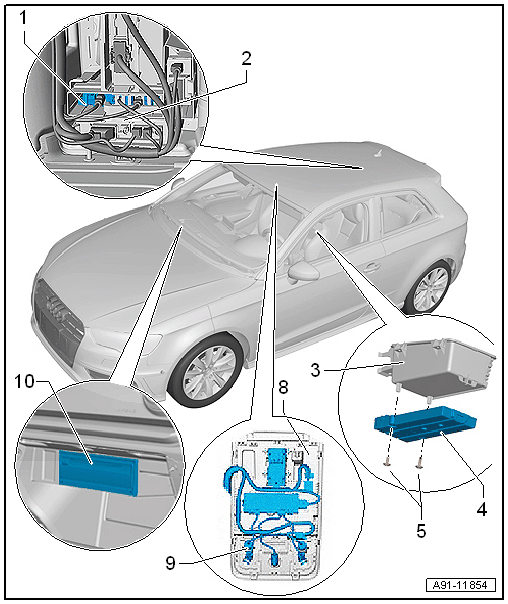

Fig 1: Overview Of Telephone System, 3-Door And 5-Door Vehicles, Through MY 2016

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Cellular Telephone Amplifier -R86-
  • Connector Assignment. Refer to Cellular Telephone Amplifier -R86- .
  • Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, 3- AND 5-DOOR VEHICLES .
• 2 -  Bracket Catch
• 3 -  Center Console Storage Compartment
• 4 -  Telephone Baseplate -R126-
  • Audi phone box
  • Connector Assignment. Refer to Telephone Baseplate -R126-, THROUGH MY 2016 .
  • Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, THROUGH MY 2016 .
• 5 -  Bolt
  • Quantity: 2
  • 2 Nm
• 8 -  Front Interior Lamp -W1-
  • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
• 9 -  Telephone Microphone -R38-
  • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
  • Removing and Installing. Refer to Microphone Unit In Front Roof Module -R164-, REMOVING AND INSTALLING, 3- AND 5-DOOR VEHICLES AND SEDAN .
• 10 -  Information Electronics Control Module 1 -J794-
  • Connector Assignment, MMI Radio MOST (I8D). Refer to MMI RADIO MOST (I8D), THROUGH MY 2016
  • Connector Assignment, MMI Navigation plus (I8G). Refer to MMI NAVIGATION PLUS (I8G), THROUGH MY 2016 .
  • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
