Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING, CABRIOLET: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the side trim panel insert. Refer to OVERVIEW - SIDE TRIM PANEL .

The Left Rear Treble Speaker -R14- is clipped into the trim on the side trim panel.

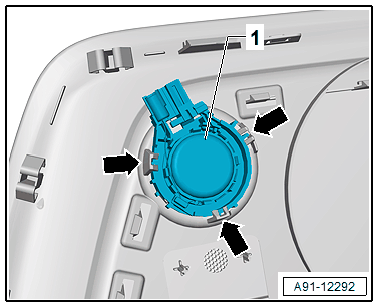

-- Press the tabs -arrows- until the Left Rear Treble Speaker -R14- -1- can be removed from the trim on the side trim panel.

GWWA91-12292Courtesy of AUDI OF AMERICA, LLC
