Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 5-DOOR VEHICLES AND SEDAN: Notes

Special tools and workshop equipment required

• Torque Screwdriver: V.A.G 1624
  Fig 1: Identifying Torque Screwdriver VAG1624

  Courtesy of AUDI OF AMERICA, LLC

The Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17- -2- are located at the bottom of the rear doors.

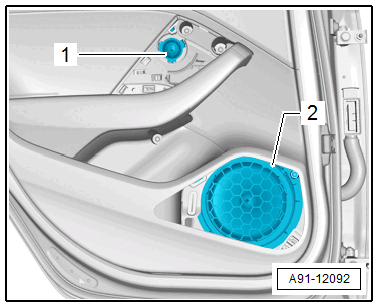

Fig 2: Locating Left/Right Rear Bass Speaker -R15- / -R17-

Courtesy of AUDI OF AMERICA, LLC

Removing and installing is identical.
