Roof Antenna, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- On 3- and 5-door vehicles, lower the back of the headliner. Refer to OVERVIEW - HEADLINER .

-- On the Sedan, remove the entire headliner, but do not remove it from the vehicle. Refer to OVERVIEW - HEADLINER .

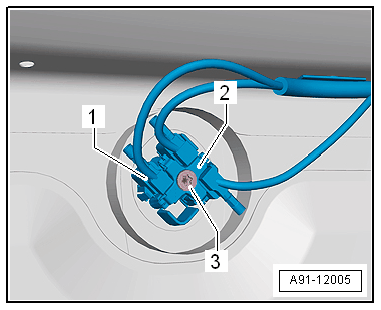

-- Depending on the vehicle equipment, release and disconnect the connectors -1- to the antenna wires.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -3-.

-- Remove the Roof Antenna -R216- -2- upward from the roof.
