Instrument Panel Antenna, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

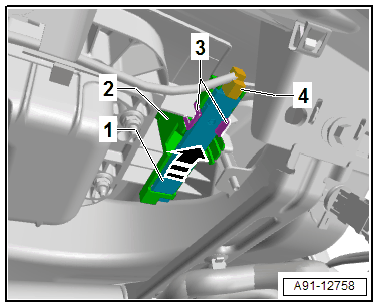

-- Release and disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -3- from the bracket -2-.

-- Remove the antenna -1- in the -direction of the arrow- from the bracket -2-.
