Roof Antenna -R216-, 3-AND 5-DOOR, SEDAN

Roof Antenna R216, except North America

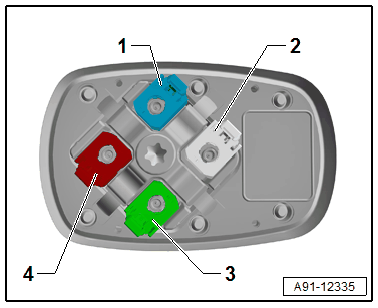

Fig 1: Identifying Roof Antenna -R216-

Courtesy of AUDI OF AMERICA, LLC

1. GPS Antenna -R50-, blue
2. Not assigned, white
3. Auxiliary Heater Antenna -R182-, green
4. Telephone Antenna -R65-, bordeaux

Roof Antenna R216, North America only

Fig 2: Identifying Roof Antenna -R216-

Courtesy of AUDI OF AMERICA, LLC

1. GPS Antenna -R50-, blue
2. Not assigned, white
3. Satellite Tuner Antenna -R172-, green
4. Telephone Antenna -R65-, bordeaux
