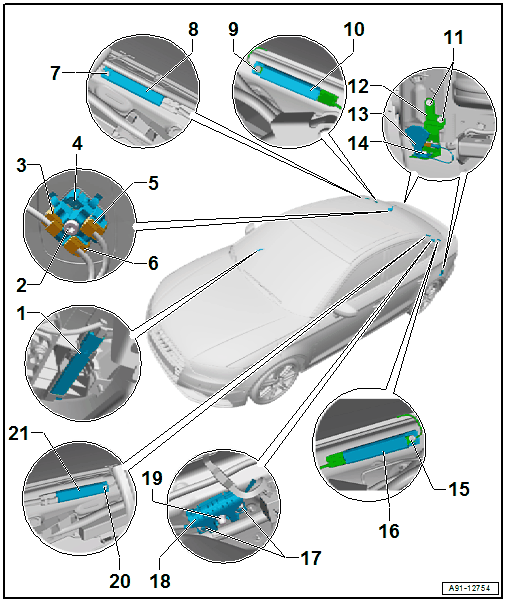

Component Location Overview - Antenna Systems, Sedan
- LTE Antenna 2 -R306-
- Only equipped for ERA-GLONASS (EL3 + 9ZE/9ZC)
- Antenna assignment depends on equipment. Refer to OVERVIEW - ANTENNA SYSTEM, SEDAN
- Removing and Installing. Refer to INSTRUMENT PANEL ANTENNA, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- GPS Connection from GPS Antenna -R50-
- Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- RC Connection from Auxiliary Heater Antenna -R182-
- SAT connection from Satellite Tuner Antenna -R172-
- Antenna assignment depends on equipment. Refer to OVERVIEW - ANTENNA SYSTEM, SEDAN
- GSM Connection from Telephone Antenna -R65-
- GSM connection from the Emergency Call Module Antenna -R263-, only for ERA-GLONASS
- Antenna assignment depends on equipment. Refer to OVERVIEW - ANTENNA SYSTEM, SEDAN
- Bolt
- 2 Nm
- Antenna Amplifier -R24-
- Connector Assignment. Refer to Antenna Amplifier -R24- CONNECTOR ASSIGNMENTS, SEDAN .
- Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, SEDAN .
- Bolt
- 2 Nm
- Antenna Amplifier 3 -R112-
- Connector Assignment. Refer to Antenna Amplifier 3 -R112- CONNECTOR ASSIGNMENTS, SEDAN .
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, SEDAN .
- Nut
- Quantity: 2 on each side
- 4 Nm
- Bracket
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING, SEDAN AND CONVERTIBLE .
- Bumper Antennas
- Antenna assignment depends on equipment. Refer to OVERVIEW - ANTENNA SYSTEM, SEDAN
- Telephone Antenna -R65- under the rear bumper cover on the right side, only for ERA-GLONASS (EL3 + 9ZE/9ZC)
- LTE Antenna 1 -R297- under the rear bumper cover on the left side
- LTE Antenna 2 -R306- under the rear bumper cover on the right side
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING, SEDAN AND CONVERTIBLE .
- Nut
- Quantity: 1 on each side
- 4 Nm
- Bolt
- 2 Nm
- Antenna Amplifier 4 -R113-
- Connector Assignment. Refer to Antenna Amplifier 4 -R113- CONNECTOR ASSIGNMENTS, SEDAN .
- Removing and Installing. Refer to Antenna Amplifier 4 -R113-, REMOVING AND INSTALLING, SEDAN .
- Nut
- Quantity: 2
- 9 Nm
- Windshield Antenna Suppression Filter -C18-
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, SEDAN .
- Nut
- 9 Nm
- Bolt
- 2 Nm
- Antenna Amplifier 2 -R111-
- Connector Assignment. Refer to Antenna Amplifier 2 -R111-, CONNECTOR ASSIGNMENTS, SEDAN .
- Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, SEDAN .
