Close Range Communication Antenna, Removing And Installing: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the center speaker trim in the instrument panel. Refer to Overview - Instrument Panel .

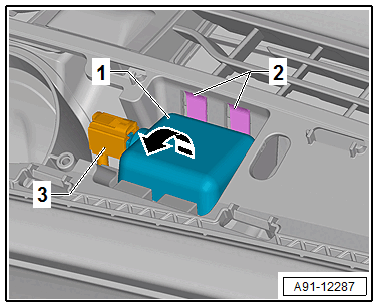

-- Release the catches -2- for the Near Field Communication Antenna -R269- -1-.
-- Tilt the Near Field Communication Antenna -R269- -1- in the -direction of the arrow- out of the holder in the instrument panel.
-- Release and disconnect the connector -3- from the Near Field Communication Antenna -R269- -1-.
-- Remove the Near Field Communication Antenna -R269-.
