Component Location Overview - Telephone System, From My 2017
NOTE:
The component locations are shown on a 5-door vehicle. The component locations for the other vehicle models are the same.

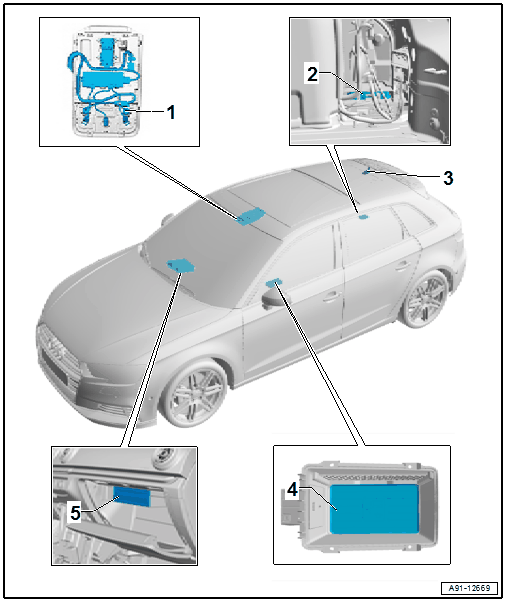

- Telephone Microphone -R38-
- Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing. Refer to MICROPHONE UNIT IN FRONT ROOF MODULE -R164-, REMOVING AND INSTALLING, CONVERTIBLE .
- Cellular Telephone Amplifier -R86-
- Connector Assignment. Refer to CELLULAR TELEPHONE AMPLIFIER -R86- .
- Removing and installing. Refer to CELLULAR TELEPHONE AMPLIFIER -R86-, REMOVING AND INSTALLING .
- Telephone Antenna -R65-
- In the Roof Antenna -R216- on 3-door and 5-door vehicles, Sedan
- In the convertible top compartment cover, Cabriolet
- Removing and installing. Refer to TELEPHONE ANTENNA, REMOVING AND INSTALLING .
- Telephone Baseplate -R126-
- Audi phone box
- Connector Assignment. Refer to TELEPHONE BASEPLATE -R126-, FROM MY 2017 .
- Removing and installing. Refer to TELEPHONE BASEPLATE -R126-, REMOVING AND INSTALLING, FROM MY 2017 .
- Information Electronics Control Module 1 -J794-
- Connector Assignment, MMI Radio (I8E). Refer to MMI RADIO (I8E), FROM MY 2017
- Connector Assignment, Radio High Scale (I8S). Refer to MMI RADIO PLUS (I8S), MMI NAVIGATION PLUS (I8L), FROM MY 2017
- Connector Assignment, MMI Navigation plus (I8L). Refer to MMI RADIO PLUS (I8S), MMI NAVIGATION PLUS (I8L), FROM MY 2017
- Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
