Left & Right FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

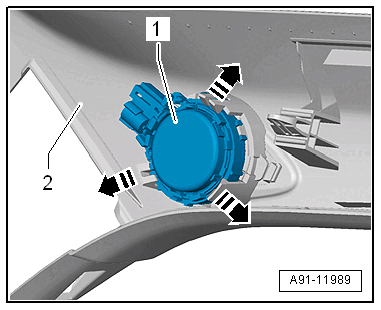

-- Release and disconnect the connector from the Left Front Treble Speaker -R20- -1-.

GWWA91-11989Courtesy of AUDI OF AMERICA, LLC

-- Press the tabs in the direction of -arrow- until the Left Front Treble Speaker -R20- -1- can be removed from the A-pillar trim panel -2-.
