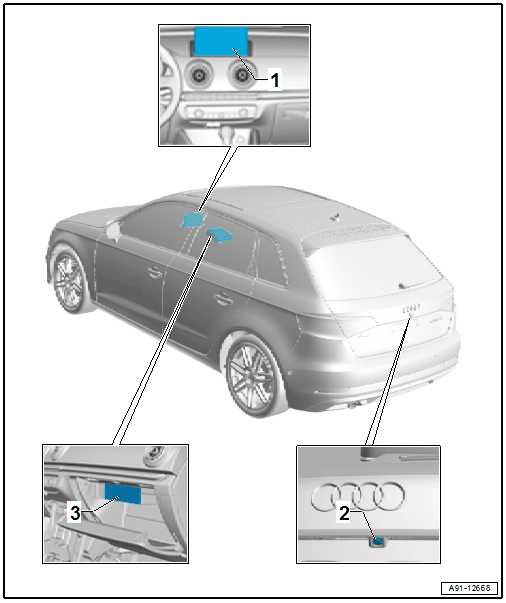

Component Location Overview - Rearview Camera System, From My 2017
NOTE:
The component locations are shown on a 5-door vehicle. The component locations for the other vehicle models are the same.
- Front Information Display Control Head -J685-
- Connector Assignment. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD -J685- .
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Rearview Camera -R189-
- With Rearview Camera System Control Module -J772-
- Connector Assignment. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- CONNECTORS, FROM MY 2017 .
- Removing and installing. Refer to REARVIEW CAMERA -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Information Electronics Control Module 1 -J794-
- Connector Assignment. Refer to CONNECTOR ASSIGNMENTS .
- Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
