Aux In, Through My 2016

NOTE:

Unlisted connector terminals are not assigned.

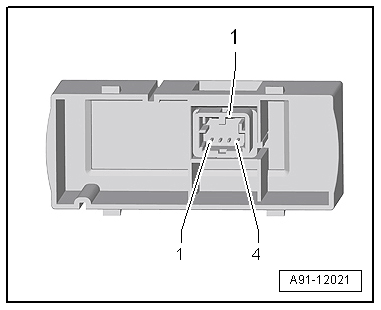

Fig 1: 1 - 4-Pin Connector -T4s-
GWWA91-12021Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

  1. LF right
  2. LF ground
  3. LF left
  4. LF ground
