Overview - Telephone, AUDI Phone Box (9ZE)

The Information Electronics Control Module 1 -J794- is installed with the Telephone Microphone -R38- and is used for hands-free calling.

Operation is performed via the Multimedia System Control Head -E380- or via the Cellular Telephone -R54-.

The Cellular Telephone -R54- is connected via Bluetooth. The Bluetooth Antenna -R152- is installed in the Information Electronics Control Module 1 -J794-.

The Telephone Baseplate -R126- (Audi phone box) is installed in the center console with a pairing antenna. From MY 2017, the Telephone Baseplate -R126- is also equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.

The Telephone Antenna -R65- is connected through the Cellular Telephone Amplifier -R86- to the Telephone Baseplate -R126-.

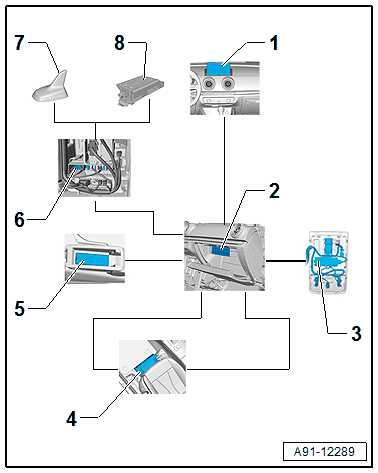

9ZE - Audi phone box

1. Front Information Display Control Head -J685- in Center of the Instrument Panel
2. Information Electronics Control Module 1 -J794- with Bluetooth Antenna -R152- in the Glove Compartment
3. Microphone Unit in Front Roof Module -R164- (Telephone Microphone -R38-) in the Front Interior Lamp -W1-
4. Digital Sound System Control Module -J525- under the Left Front Seat
5. Telephone Baseplate -R126- (Audi phone box) in Center Console Storage Compartment
6. Cellular Telephone Amplifier -R86- behind the right luggage compartment trim panel
7. Telephone Antenna -R65- in the Roof Antenna -R216- /under the rear bumper cover on the right side, 3-door, 5-door, Sedan
8. Telephone Antenna -R65- in the Convertible Top Compartment Cover, Cabriolet

Antennas

Audi phone box (9ZE) without online service (EL0):

• The Telephone Antenna -R65- is installed in the Roof Antenna -R216- /under the rear bumper cover on the right side/in the convertible top compartment cover (depending on the model and equipment)
• No LTE antennas (LTE Antenna 1 -R297- /LTE Antenna 2 -R306-) are installed

Audi phone box (9ZE) with Audi connect (EL3/EL5):

• The Telephone Antenna -R65- is installed in the Roof Antenna -R216- /under the rear bumper cover on the right side/in the convertible top compartment cover (depending on the model and equipment)
• The LTE Antenna 1 -R297- is installed under the left rear bumper cover.
• The LTE Antenna 2 -R306- is installed under the rear bumper cover on the right side/in the right instrument panel (depending on the equipment)

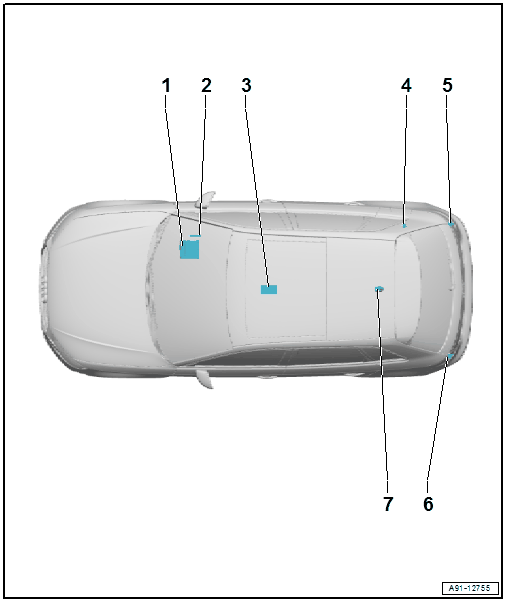

Overview - Telephone Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. LTE Antenna 2 -R306-
   • Only for EL5/NZ3
3. Telephone Baseplate -R126-
4. Cellular Telephone Amplifier -R86-
5. Right Bumper Antenna
   • LTE Antenna 2 -R306-, only for EL3 and NZ0
   • Telephone Antenna -R65-, only on NZ3
6. LTE Antenna 1 -R297-
   • Only with EL3/EL5
7. Telephone Antenna -R65-
   • In the Roof Antenna -R216-, only on 3-door, 5-door, Sedan and NZ0
   • In the convertible top compartment cover, only on Cabriolet

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Antenna Wires, Repairing. Refer to ANTENNA WIRES, REPAIRING .

Notes on Bluetooth technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology.

An additional transmitter/receiver unit is installed in the Information Electronics Control Module 1 -J794-. A Bluetooth Antenna -R152- connects the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- so that the Cellular Telephone -R54- can be operated wirelessly (no wire connection).

The range of the radio connection is approximately 10 m (32.8 feet).
