Overview - Radio, Radio Can (I8A), Through My 2016

I8A - Radio CAN

• Information Electronics Control Module 1 -J794- with integrated CD player in the glove compartment
• Radio -R- integrated in the Information Electronics Control Module 1 -J794-
• External control unit with display (Multimedia System Control Head -E380-) in the center of instrument panel.
• Sound systems: basic/basic plus sound system, 8RE/8RM
• External Audio Source Connection -R199- (AUX IN jack) in the center console storage compartment, UE3

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Courtesy of AUDI OF AMERICA, LLC

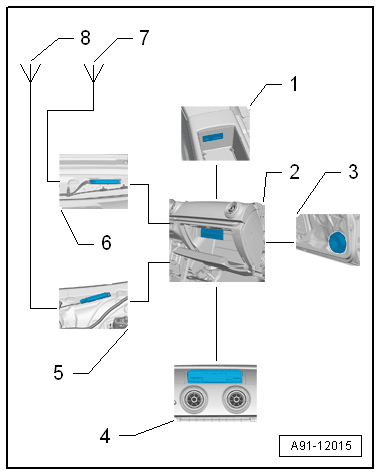

1. External Audio Source Connection -R199- in the Center Console Storage Compartment
2. Information Electronics Control Module 1 -J794- in the Glove Compartment
3. Sound Systems
4. Multimedia System Control Head -E380- in the instrument panel
5. Antenna Amplifier 2 -R111- behind the left rear lid trim panel at the bottom (3- and 5-door vehicles)/behind the left D-pillar trim, at the top (Sedan)/Antenna Amplifier 3 -R112- behind the left rear side trim panel (Convertible)
6. Antenna Amplifier -R24- behind the left upper rear lid trim panel (3- and 5-door vehicles)/behind the right upper D-pillar trim panel (Sedan)/behind the right rear side trim panel (Convertible)
7. Antenna -R11- rear window/right rear side trim panel
8. Radio Antenna 2 -R93- rear window/left rear side trim panel
