Overview - Radio, MMI Radio Plus (I8S), From My 2017

I8S - MMI Radio Plus

• Information Electronics Control Module 1 -J794- with integrated CD player/SD card reader in the glove compartment
• Radio -R- integrated in the Information Electronics Control Module 1 -J794-
• Multimedia System Control Head -E380- in the Center Console
• Front Information Display Control Head -J685- (7 inch display) in the center of the instrument panel
• External Audio Source Connection -R199- (AUX IN jack and USB charging port) in the center console storage compartment, UE4
• Basic plus sound system, 8RM
• Video input for camera systems
• Bluetooth interface, 9ZX

Optional

• Digital Radio -R147- integrated in the Information Electronics Control Module 1 -J794-, QV3
• Satellite Radio System -R146- integrated in the Information Electronics Control Module 1 -J794-, only NAR and QV3
• TV Tuner -R78- behind the right luggage compartment trim panel (3-door and 5-door vehicles, Sedan)/behind the right rear side trim panel (Cabriolet), QV1
• Digital Sound System Control Module -J525- under the left front seat, 9VS
• Audi smartphone interface (AUX IN jack and two USB ports with charging and data transfer function) in the center console storage compartment, UE7
• Audi Sound System, 9VD
• Bang & Olufsen Sound System, 9VS
• Audi phone box, 9ZE
• Audi connect with Audi phone box, 9ZC
• Multifunction Steering Wheel
• Connectivity packet ready 4 nav (navigation pre-installation), 7UH
• MMI navigation module, 7UF

Courtesy of AUDI OF AMERICA, LLC

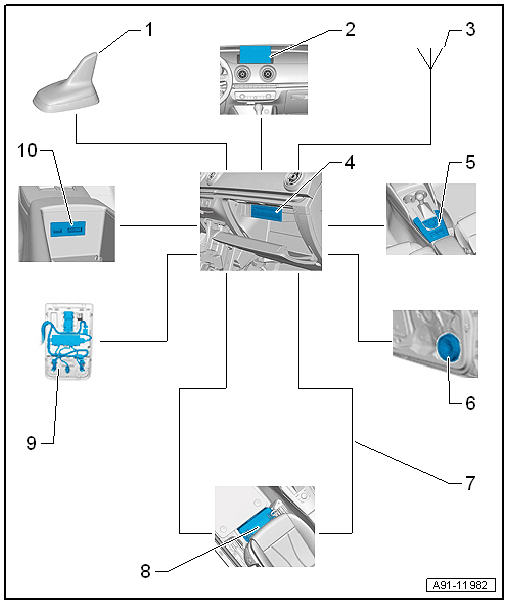

1. Roof Antenna -R216-
   • Not for the convertible
2. Front Information Display Control Head -J685- in Center of the Instrument Panel
3. Rear Window Antennas (3-door and 5-door, sedan)/Front and Rear Window Antennas Plus Antennas in the Side Trim Panels (Convertible)
4. Information Electronics Control Module 1 -J794- in the Glove Compartment
5. Multimedia System Control Head -E380- in the Center Console
6. Sound Systems
7. MOST Bus
8. Digital Sound System Control Module -J525- under the Left Front Seat
9. Microphone Unit in Front Roof Module -R164- (Telephone Microphone -R38-) in the Front Interior Lamp -W1-
10. External Audio Source Connection -R199- in the Center Console Storage Compartment

The data exchange for the Bang & Olufsen sound system (9VS) and the TV Tuner -R78- (QV1) occurs through the MOST bus.

The connection to other vehicle systems is established through the CAN bus (Infotainment) and the Data Bus on Board Diagnostic Interface -J533-.

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Notes on MOST bus

The optical data bus "MOST bus" is used in addition to the CAN bus.

A fiber-optic cable is used as a "connecting cable". Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS 6223/9  .

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber optic cables.

Fiber-optic cable repair. Refer to FIBER-OPTIC CABLES, REPAIRING .
