Overview - Radio, AUDI Radio Can (I7X), Through My 2016

I7X - Audi Radio CAN

• Information Electronics Control Module 1 -J794- with integrated CD player in the glove compartment
• Radio -R- integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685- (5.8 inch display) in center of the instrument panel
• Multimedia System Control Head -E380- in the Center Console
• Basic plus sound system, 8RM
• External Audio Source Connection -R199- (AUX IN jack) in the center console storage compartment, UE3
• SD card reader

Optional

• Multifunction Steering Wheel

The connection to other vehicle systems is established through the CAN bus (Infotainment) and the Data Bus on Board Diagnostic Interface -J533-.

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Courtesy of AUDI OF AMERICA, LLC

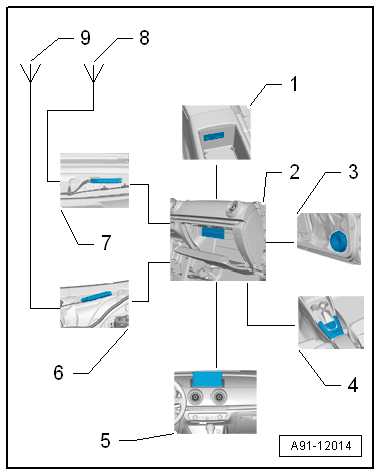

1. External Audio Source Connection -R199- in the Center Console Storage Compartment
2. Information Electronics Control Module 1 -J794- in the Glove Compartment
3. Sound Systems
4. Multimedia System Control Head -E380- in the Center Console
5. Front Information Display Control Head -J685- in Center of the Instrument Panel
6. Antenna Amplifier 2 -R111- behind the left rear lid trim panel at the bottom (3- and 5-door vehicles)/behind the left D-pillar trim, at the top (Sedan)/Antenna Amplifier 3 -R112- behind the left rear side trim panel (Convertible)
7. Antenna Amplifier -R24- behind the left upper rear lid trim panel (3- and 5-door vehicles)/behind the right upper D-pillar trim panel (Sedan)/behind the right rear side trim panel (Convertible)
8. Antenna -R11- rear window/right rear side trim panel
9. Radio Antenna 2 -R93- rear window/left rear side trim panel
