AUDI Radio Can (I7X), Through My 2016

Information Electronics Control Module 1 J794

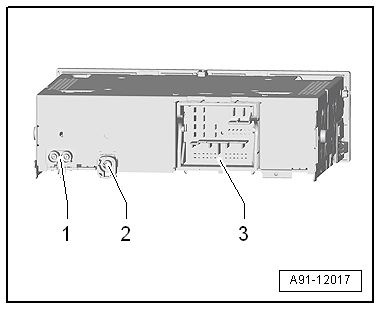

1. Connection, AM/FM1/FM2
2. 4-Pin Connector -T4al- to the Front Information Display Control Head -J685-
3. Connection Block with Four Multi-Pin Connectors

1 - AM/FM1/FM2 antenna connection

1. Connector 2, AM/FM1 from Antenna Amplifier -R24-, Antenna -R11-
2. Connector 1, FM2 from Antenna Amplifier 2 -R111- or Antenna Amplifier 3 -R112-, Radio Antenna 2 -R93-

2 - 4-Pin Connector T4al

All pins are connected to the Front Information Display Control Head -J685-.

1. LVDS (-)
2. Not Assigned
3. LVDS (+)
4. Ground

3 - Connection block with four multi-pin connectors

A - 8-Pin Connector T8ag

1. Right Rear Speaker (+)
2. Right Front Speaker (+)
3. Left Front Speaker (+)
4. Left Rear Speaker (+)
5. Right Rear Speaker (-)
6. Right Front Speaker (-)
7. Left Front Speaker (-)
8. Left Rear Speaker (-)

B - not assigned

C - 12-Pin Connector T12y

1 -  LF-In ground from External Audio Source Connection -R199-

2 -  Right LF-In from External Audio Source Connection -R199-

7 -  Left LF-In from External Audio Source Connection -R199-

8 -  LF-In ground shielding

D - 8-Pin Connector T8j

17 -  Terminal 31

18 -  Terminal 30

E - 12-Pin Connector T12w

1 -  CAN bus high to the Multimedia System Control Head -E380- /Front Information Display Control Head -J685-

2 -  Reset Multimedia System Control Head -E380-

6 -  CAN bus high, Infotainment

7 -  CAN bus low to the Multimedia System Control Head -E380- /Front Information Display Control Head -J685-

8 -  Reset Information Electronics Control Module 1 -J794-) from Multimedia System Control Head -E380-

12 -  CAN bus low, Infotainment
