Connector Assignments, Era-GLONASS, Pr Number NZ3

Control Module for Emergency Call Module and Communication Unit J949

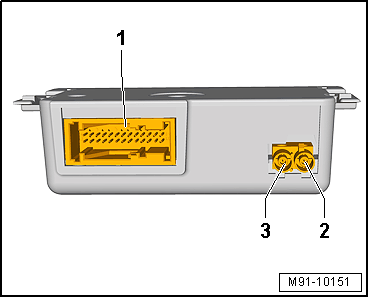

Fig 1: Control Module For Emergency Call Module and Communication Unit -J949-

Courtesy of AUDI OF AMERICA, LLC

1. 26-Pin Connector -T26-
2. GPS Connection, GPS Antenna -R50-
3. GSM connection, Emergency Call Module Antenna -R263-

1 - 26-Pin Connector T26

Fig 2: 26-Pin Connector 5, Audio And Video

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30
2. Convenience CAN Bus Low
3. Crash Signal from Airbag Control Module -J234-
4. Microphone input (+), from Telephone Microphone -R38-
5. Not Assigned
6. Output to Emergency Call Button -E276-
7. Green function lamp for Emergency Call Button -E276-
8. Mute Signal to Information Electronics Control Module 1 -J794-
9. Emergency Call Module Speaker -R335- (+)
10. LF Output (+) to Information Electronics Control Module 1 -J794-
11. LF Output (-) to Information Electronics Control Module 1 -J794-
12. Not Assigned
13. Search lamp for Emergency Call Button -E276-
14. Convenience CAN Bus High
15. Not Assigned
16. Not Assigned
17. Microphone input (-), from Telephone Microphone -R38-
18. Not Assigned
19. Ground supply for Emergency Call Button -E276-
20. Red function lamp for Emergency Call Button -E276-
21. Emergency Call Module Speaker -R335- (-)
22. Not Assigned
23. Not Assigned
24. Not Assigned
25. Not Assigned
26. Terminal 31
