Component Location Overview - Mobile Online Services, Pr Number El1/El5

Courtesy of AUDI OF AMERICA, LLC

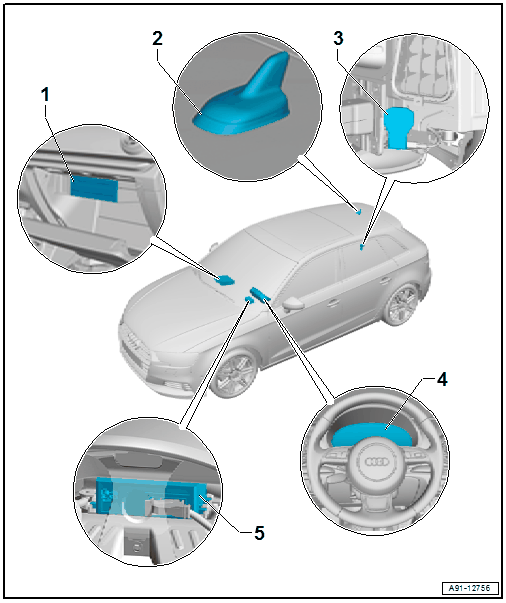

1. Information Electronics Control Module 1 -J794-
   • Installed in the glove compartment
   • Connector Assignment. Refer to CONNECTOR ASSIGNMENTS .
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. GPS Antenna -R50-
   • In the Roof Antenna -R216-
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
3. GSM Antenna -R205-
   • From 11/07/2016
   • Under the rear bumper cover on the right side
   • Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING, 3-DOOR AND 5-DOOR .
4. Instrument Cluster -KX2-
   • Removing and Installing. Refer to OVERVIEW - INSTRUMENT CLUSTER .
5. Control Module for Emergency Call Module and Communication Unit -J949-
   • Behind the Instrument Cluster -KX2-
   • Connector Assignment. Refer to CONNECTOR ASSIGNMENTS, PR NUMBER EL1/EL5 .
   • Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
