Satellite Tuner Antenna, Removing And Installing, Convertible: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid trim panel. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .

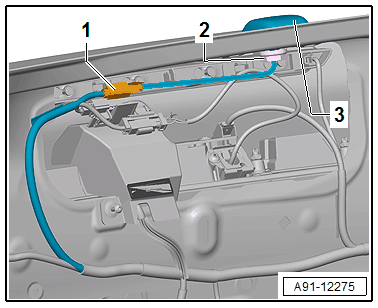

-- Release and disconnect the connector -1- for the Satellite Tuner Antenna -R172- -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- from the Satellite Tuner Antenna -R172- -3- and remove it from the antenna wire.

-- Remove the Satellite Tuner Antenna -R172- -3- upward from the rear lid.
