GPS Antenna, Removing And Installing, Cabriolet: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the center speaker trim in the instrument panel. Refer to Overview - Instrument Panel .

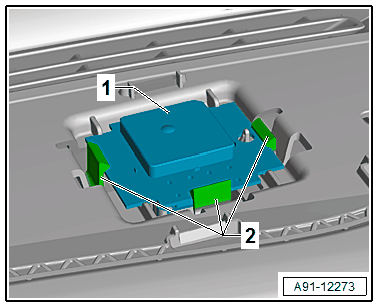

-- Release the catches -2- for the GPS Antenna -R50- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the GPS Antenna -R50- -1- upward out of the instrument panel until the connector is accessible.

-- Release and disconnect the connector from the GPS Antenna -R50- -1-.

-- Remove the GPS Antenna -R50-.
