Bumper Antennas, Removing And Installing, Sedan And Convertible: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

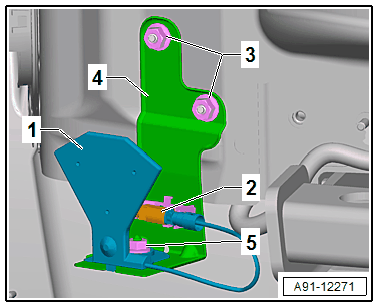

-- Release and disconnect the connector -2- for the left bumper antenna -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Depending on the version of the installed bumper antenna, the connector -2- may be located directly on the bumper antenna -1-.

-- Remove the nut -5- for the left bumper antenna -1-.

-- Remove the left bumper antenna -1- from the bracket -4-.

-- Remove the nuts -3- for the bracket -4-

-- Remove the bracket -4- from the vehicle body.
