Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, CABRIOLET: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the left side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .

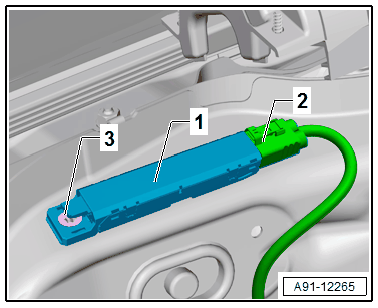

-- Release and disconnect the connector -2- from the Antenna Amplifier 3 -R112- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the screw -3- (do not remove) and remove the Antenna Amplifier 3 -R112- -1- from the frame.
