Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, 3-DOOR AND 5-DOOR VEHICLES: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower rear lid trim panel. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .

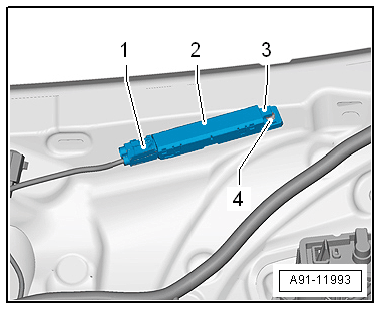

-- Release and disconnect the connectors -1- and -3- from the Antenna Amplifier 2 -R111- -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the screw -4- (do not remove) and remove the Antenna Amplifier 2 -R111- -2- from the rear lid.
