Explanations Of Production Control Numbers (Pr Number)
The vehicle data plate documents which front/rear axle or tire pressure monitoring system is installed using the corresponding PR numbers.
There is a vehicle data label in the spare wheel well and also one in the customer Maintenance booklet.
Information regarding each chassis installed can be found in ELSA in Vehicle Data.

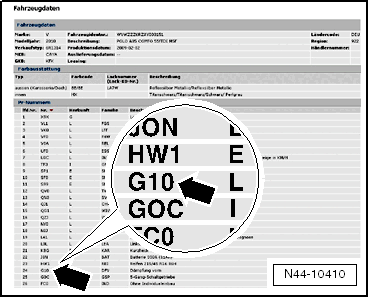

In this example, the sport suspension G10 is installed in the vehicle (see the magnified area).
Standard suspension = 2UA and G01/G02/G03/G04/G05/G14/G15/G16/G21/G22/G23/G24/G41/G42/G43/G44/G51
Sport suspension = 2UC and G01/G02/G03/G04/G21/G22/G23/G24/G41/G42/G43/G44/G45/G62/G63/G64
Heavy duty suspension = 2UF and G01/G02/G03/G04/G21/G22/G23/G24/G25
Sport suspension with Audi magnetic ride = 2UC and G05/G07/G25/G45
Sport suspension S3 and sport suspension S3 Audi magnetic ride = 2UC and G06/G07/G26/G27/G46/G47
S-line sport suspension = 2UG and G34/G35/G36/G47/G48/G49/G50
Sport suspension RS3 = 2UC and G08/G09
Sport suspension RS3 with Audi magnetic ride = 2UC and G08
