Overview - Muffler, Vehicles With Fwd: Notes

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

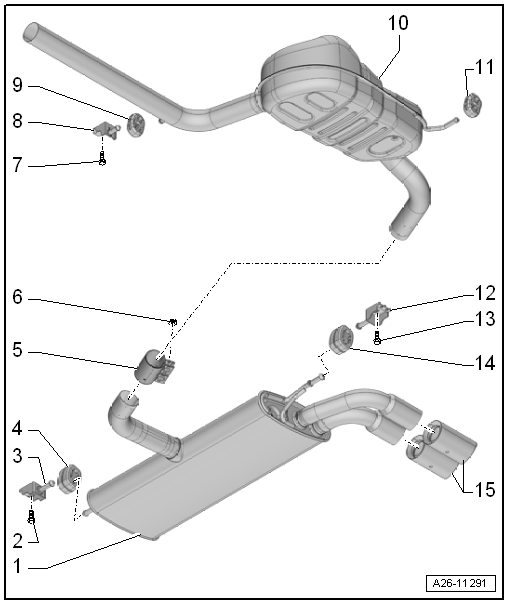

Fig 1: Exploded View Of Muffler, Vehicles With FWD

Courtesy of AUDI OF AMERICA, LLC

Rear Muffler
- Original equipment as one unit with the rear muffler. If a repair is required replace each separately
- Removing and installing. Refer to MUFFLER, REMOVING AND INSTALLING .
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- 20 Nm
Bracket
Retaining Loop
- Replace if damaged
Rear Clamping Sleeve
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installation position. Refer to INSTALLATION POSITION FOR REAR CLAMPING SLEEVE
- Tighten threaded connections evenly.
Nut
- 20 Nm
Bolt
- 20 Nm
Bracket
Retaining Loop
- Replace if damaged
Center Muffler
- Original equipment as one unit with the rear muffler. If a repair is required replace each separately
- Removing and installing. Refer to MUFFLER, REMOVING AND INSTALLING .
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Retaining Loop
- Replace if damaged
Bracket
Bolt
- 20 Nm
Retaining Loop
- Replace if damaged
Trim
- For the tail pipes
