Muffler, Removing And Installing, AWD Vehicles: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

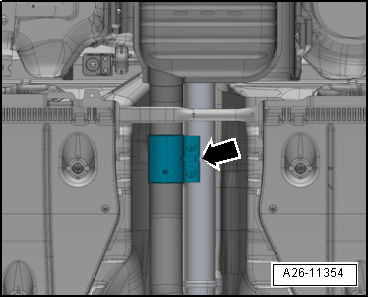

-- Loosen the threaded connections for the front clamping sleeve -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with 2.0L Engine:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the left and right connector -3- from the exhaust door control unit -2-.

A3 Cabriolet:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the corresponding diagonal brace. Refer to SUBFRAME .

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the mounting -3- from the exhaust system rear section.

WARNING:

Risk of accident due to the weight of the muffler.

A second technician is required to remove the rear muffler.

-- Remove the bolts -1 and 2- and then remove the muffler.
