Tail Pipes, Aligning: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

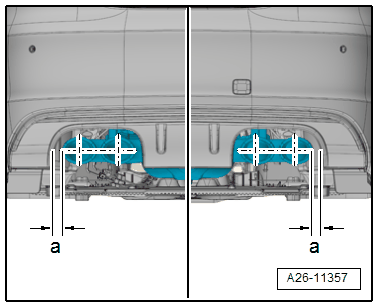

-- Align the rear muffler so that the space between the opening for the bumper and the tail pipes is the same.
Vehicles with 1.8L Engine:
 Courtesy of AUDI OF AMERICA, LLC
|
Vehicles with 2.0L Engine:
 Courtesy of AUDI OF AMERICA, LLC
|
-- Loosen the rear muffler to align the tail pipes.
