Exhaust Pipes/Mufflers, Separating, AWD Vehicles: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

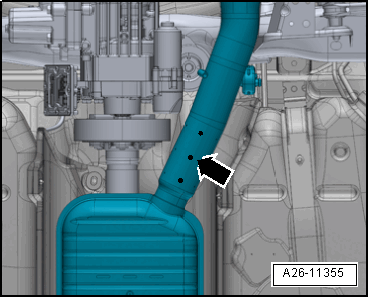

-- Separate the exhaust pipe at a right angle at the separating point -arrow- using a :VAS6254 .

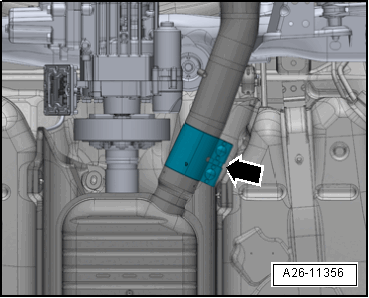

-- When installing, position clamping sleeve -arrows- centrally on the separation point.
-- Install the rear clamping sleeve. Refer to INSTALLATION POSITION FOR REAR CLAMPING SLEEVE .
-- Install the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
