Transmission Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the battery tray -1-. Refer to BATTERY .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Engine Control Module -J623- from the bracket. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Depending on the version different brackets are installed.

-- Unclip the wiring guide -1- upward in direction of -arrows- and move it slightly to the side.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The illustration shows a vehicle with dual-clutch transmission 0CW.

Courtesy of AUDI OF AMERICA, LLC

-- If applicable, remove the nut -arrow- and free up the ground cable.

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

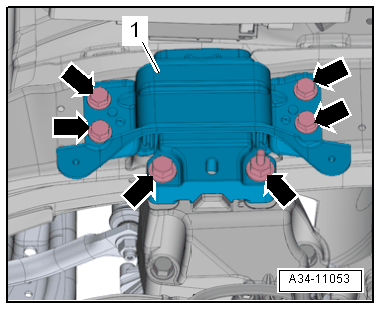

-- Remove the bolts -arrows- and remove the transmission mount.

Courtesy of AUDI OF AMERICA, LLC

Transmission mount -1- for the manual transmission 02S/dual-clutch transmission 0CW

Transmission mount -1- for the manual transmission 02Q/dual-clutch transmission 0D9
