Vehicles With Manual Transmission 02S:

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

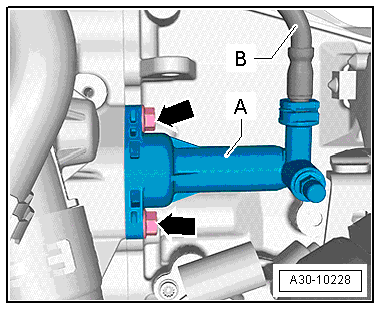

GWWA30-10228Courtesy of AUDI OF AMERICA, LLC

-- Remove the clutch slave cylinder -A- and set aside with the lines attached. Refer to CLUTCH [For transmission(s) 0GC]CLUTCH [For transmission(s) 0D9] .

CAUTION:

Risk of damaging the clutch slave cylinder.

  • If the clutch slave cylinder is removed from the transmission with hose/line assembly still connected, do not press the clutch pedal.
