Engine And Transmission, Separating, DSG® Transmission 0CW: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Engine/transmission assembly removed and mounted on :T10359A .
-- Free up the wires from the bracket -arrow-.

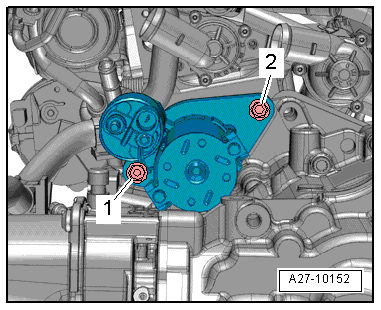

-- Remove the bolts -1 and 2- and then remove the starter from the transmission.
-- Free up the wiring harness -1 and 2- from the air duct pipe.
-- Loosen the screw-type clamp -4-.
-- Remove the bolts -arrows- and remove the air duct pipe.
-- Secure the transmission to the :VAS6100 using the :10-222A/12 .
-- Remove the bolts -1 to 8- for the transmission/engine connection.
-- Remove the transmission from the engine.
