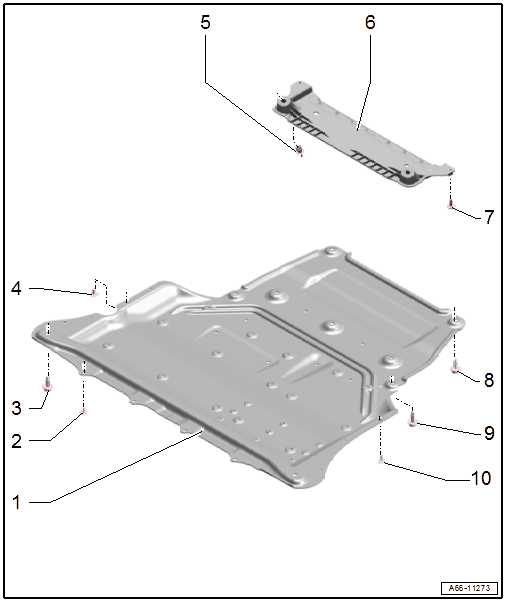

Overview - Noise Insulation
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Front Noise Insulation
- Removing and Installing. Refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 4
- Bolt
- Quantity: 2
- 24 Nm
- Bolt
- 2 Nm
- Quantity: 4
- Expanding Rivet
- Quantity: 2
- Rear Noise Insulation
- For All Wheel Drive (AWD)
- Removing and Installing. Refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING, VEHICLES WITH ALL WHEEL DRIVE (AWD) .
- Bolt
- 2 Nm
- Quantity: 2
- Bolt
- 24 Nm
- Quantity: 2
- Bolt
- 24 Nm
- Quantity: 5
- Bolt
- 2 Nm
- Quantity: 3
