Overview - Cylinder Block, Transmission Side: Notes

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

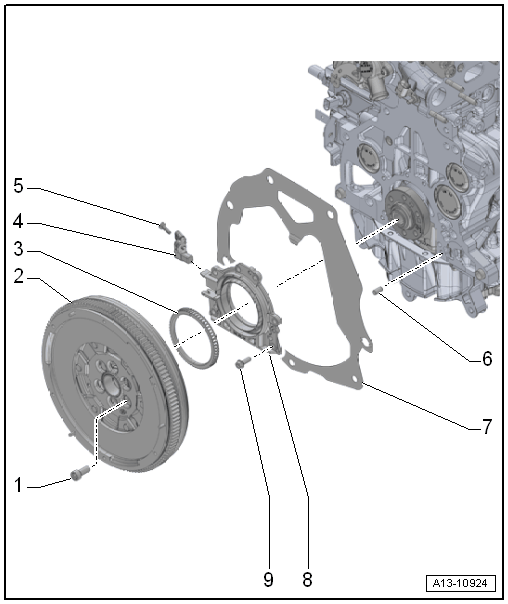

Fig 1: Exploded View Of Cylinder Block, Transmission Side

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 60 Nm + 90° turn
- Always replace after removing
Flywheel
- Removing and installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- Only possible to install in one position
Sensor Wheel
- For Engine Speed Sensor -G28-
- Removing and installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
Engine Speed Sensor -G28-
- Overview. Refer to OVERVIEW - PREGLOW SYSTEM .
Bolt
- Tightening specification -Item 9-OVERVIEW - PREGLOW SYSTEM .
Alignment Pin
- Quantity: 2
Intermediate Plate
- Be careful not to damage or bend it when installing.
- Installing. Refer to INSTALLING INTERMEDIATE PLATE .
Sealing Flange, Transmission Side
- With shaft seal
- Replacing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
Bolt
- Tightening specification and sequence. Refer to TRANSMISSION SIDE SEALING FLANGE - TIGHTENING SPECIFICATIONS AND SEQUENCE
