Charge Air Temperature Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the corresponding connector -1 or 2-.

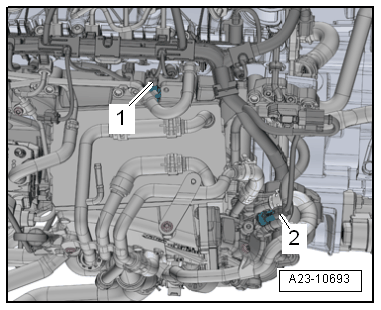

GWWA23-10693Courtesy of AUDI OF AMERICA, LLC
  1. Charge Air Temperature Sensor After Charge Air Cooler -G811-
  2. Charge Air Temperature Sensor In Front Of Charge Air Cooler -G810-

-- Remove the corresponding charge air temperature sensor.
